FEATURES/ADVANTAGES

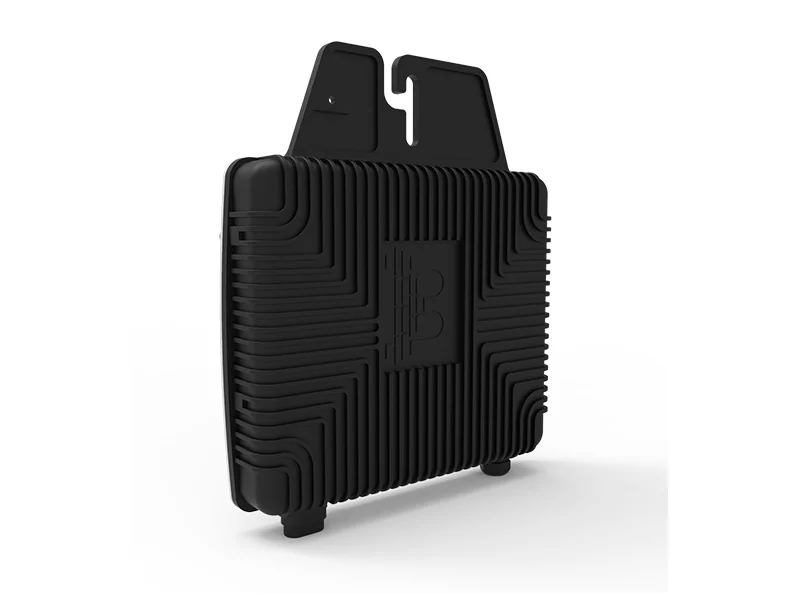

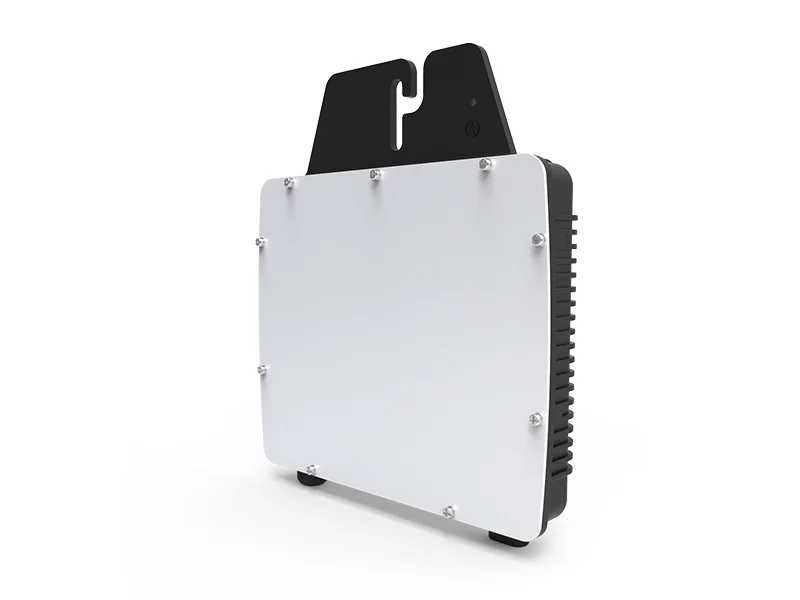

With the maximum output power of 670 W, OANISO BYM500/BYM670 microinverter connect to 1 panel and enable module-level maintenance and management of the PV station by monitoring power generation of each module.
Module-level data can be uploaded to the monitoring platform via OANISO data transfer units through PLCC/Zigbee.
| BYM500 | |
| Input Data(DC) | |
| PV module power range (recommended) | 400Wp-670Wp+ |
| MPPT voltage range | 24V-50V |
| Operating voltage range | 16V-56V |
| Maximum DC input voltage | 60V |
| Maximum short circuit input current | 24A |
| Maximum continuous input current | 20A |
| Output Data(AC) | |
| Rated output power | 500VA |
| Maximum output power | 550VA (Vac≥230，Vmp≥32) |
| Rated voltage/range | 230V/184-253V |
| Rated frequency/range | 50Hz/48-51Hz |
| Maximum continuous output current | 2.39A |
| Maximum harmonic distortion | <3% |
| Power factor | +/-0.95 |
| Maximum connection number in one string | 12 units(32A circuit breaker, 9AWG cable) |
| Efficiency | |
| Peak efficiency | 96.50% |
| European efficiency | 95.50% |
| MPPT efficiency | >99.8% |
| Night power consumption | <100mW |
| Other parameters | |
| Communication method | PLCC/Zigbee dual module |
| Safety protection class | Class I |
| Enclosure rating | IP67 |
| Operating temperature | -40℃ to +70℃ |
| Storage temperature | -40℃ to +85℃ |
| Relative humidity | 0-98% |
| Transformer design | High frequency transformer, Galvanically isolated |
| Overvoltage class | OVC III (AC main circuit)，OVC II (PV) |
| Warranty period | 10 years / 25 years(Optional) |
| Safety regulations | VDE-AR-N 4105, IEC / EN61000,IEC / EN62109-1 / 2,EN50549-1 / 2019, TOR2019 C10 / 11:2019, UTE C15-712-1:2013, VFR2019 |
