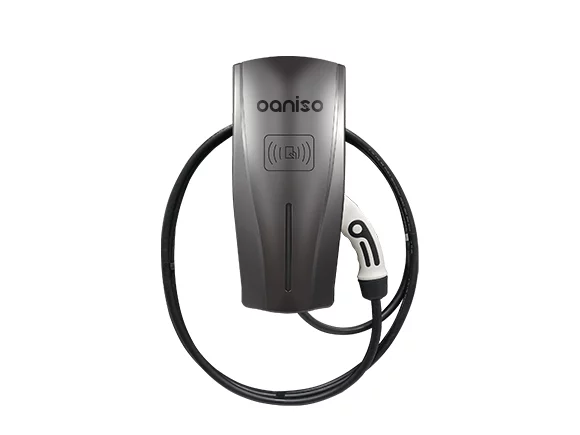

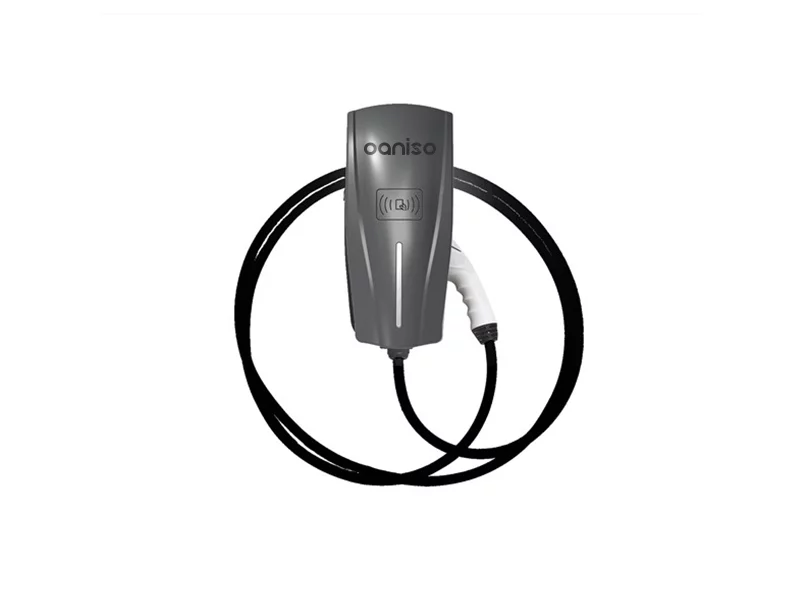

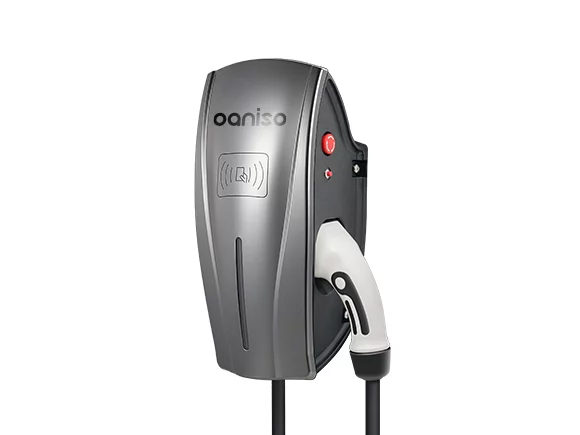

AC EV CHARGER WITH CABLE

FUNCTIONS

A mode 3 (IEC61851-1) fast EV charger for residential use

The simple non-smart EV charger BCP-A1-L has an IP65 patented design case for outdoor and indoor use.

The type 2 charging connector makes highly flexible and compatible with all electric vehicles.

Plug and start to charge automatic. (RFID card for option)

The EV charger output can be adjusted from 16 amps (11kW) all the way up to 32 amps (22kW)

Functions for Option – Dynamic load balancing

For safely balance the energy usage between your electric car chargers and other home appliances to make your car chargers in the most efficient way.

-PEN fault detection

Monitors the electrical system and in the event of a fault automatically disconnects all poles including the earth conductor.

If the user uses an EV charger equipped with PEN protection, its internal design has a contactor to cut off the ground,

once the PEN line is cut off, the contactor KM1 and KM2 are immediately and automatically disconnected,

there is only a weak leakage current between CP and PE to L line, its current value is less than 1mA,

which is the smallest perceived leakage current of the human body, people can disengage themselves, no safety risks.

– Scheduled charging smart APP

✔ One to one binding EV charger by resetting the password, prevent the EV charger being stolen;

✔ View charging data and status;

✔ Set up various charging configurations, charging current, DLB mode, etc.

✔ Scheduled charging;

✔ Firmware update;

– OCPP1.6J

Allow EV charging stations and central management systems from different vendors to communicate with each other.

Features

Connector：

Type 2 (IEC 62196-2) plug with cable

*Built-in Type B RCD for leakage protection

*Over Temperature Sensor

*Clip-on Grid Current Sensor

*LED ring status indication

*With emergency stop switch

SPECIFICATION

Electrical
Charging capacity	1.3kW-7.4kW / 4.1kW-22kW
Charge mode	Mode 3 (IEC 61851-1)
Output power	Selectable 1-phase or 3-phase, 230-400V 6 A to 32 A, 50-60 Hz
Connector options	Fixed cable type 2 plug or type 2 Socket
Fixed cable length	6m (18 ft)
Cable Entry	Rear or bottom
Protection and certification
Build-in RCD	TYPE A + DC6mA leakage sensor built-in
With Cable	IP65, IK07
Socket	IP65, IK07
Housing fire ratings	V0
Operating temperature	-25 – +55
Compliance	IEC61851-1, IEC61851-21-2, IEC61000-4 CE EMC EU/2014 CE Low Voltage EU/2014/35
Certificate	CE, UKCA, CB, RCM
Connectivity
Authorization	Auto-start standard / RFID card option
Status indication	LED ring
Charging protocol	OCPP 1.6J optional
WLAN communication	Wi-Fi / Bluetooth 4.2 option
Mechanical
Housing	Polycarbonate
Dimension	W169 x H380 x D151 mm
Mounting	Wall or Pole
